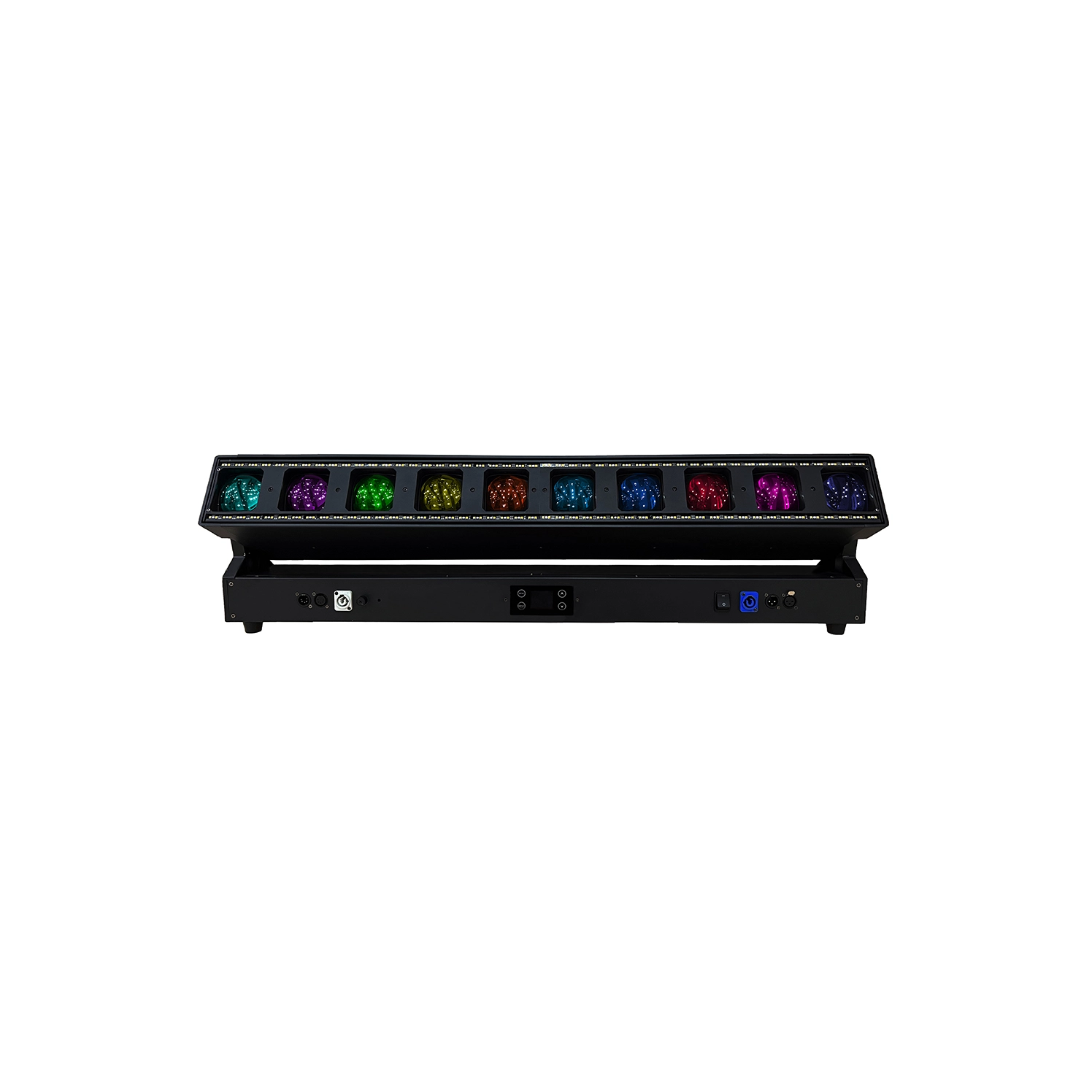

AY-1060

Electrical & Interface

• Input Voltage: AC 100-240V, 50/60Hz

• Rated Power: 1200W

Light Source

• Beam Section: 10×60W RGBW LEDs

• Strobe Section:

• 96×3W Cool White (CW) LEDs

• 96×3W Warm White (WW) LEDs

• 96×0.5W RGB LEDs

• LED Lifespan (L70): ≥50,000 hours

• White Light CCT: 6,300K

• Luminous Flux: 22,400 lumens

Optical System

• Beam Angle: 2.8°-31°

• Focus Adjustment: 3°-45° (motorized zoom)

Control

• Control Protocol: Standard 3-pin DMX512

• Channel Modes: 17/27/99 channels

• Display: OLCD screen

Pan & Tilt

• Drive System: Stepper motor

• Scanning Angle: 180°

Work Environment

• Normal Operating Surface Temperature: Tc = 35℃±3℃

• Operating Temperature: 10℃-40℃

• Storage Temperature: 1℃-40℃

Protection Rating

• IP20

Fixture Specifications

• Dimensions: 1000×120×300mm (L×W×H)

• Net Weight: 23kg

Packing Information

• Carton Dimensions:1080*200*370mm

• Gross weight : 25kg
