Electrical & Interface
Input Voltage: AC 100–240V, 50–60Hz
Power Consumption: 300W
Light Source
Light Source: 200W white LED module
Lifespan: 20,000+ hours
Color Temperature: 7,000–8,000K
Optical System
Beam Angle: 2.2°
Color Wheel
1 Color Wheel: 12 colors + white, with rainbow effect and random positioning
Gobo Wheel
1 Fixed Gobo Wheel: 14 gobos + open white, with jitter and flow effects
Dichroic Color Wheel
1 Independent 6-color wheel for prism rainbow effects
Prism Wheel
8/16-facet prism, bidirectional rotation
Frost Filter
Frost/Diffusion filter for soft beam effects
Other Effects
Dimmer: 0–100% linear dimming
Focus: Adjustable sharpness for gobos
Strobe: Synchronized/pulse strobe, random strobe
Control
DMX Channels: 12/15 channels
Control Modes: Master/Slave, DMX, manual
RDM support, DMX firmware upgrade capability
Display: 1.77" color LCD, bilingual (English/Chinese), reversible display
Pan/Tilt Movement
Pan Movement: 540°
Tilt Movement: 270°
16-bit precision scanning
Thermal & Safety
Protection: High-efficiency cooling system, real-time temperature monitoring, overheat protection, no LED damage risk
Cooling: Forced air cooling
Physical Specifications
Housing: High-strength, heat-resistant engineering plastic, streamlined design
Dimensions: 320 × 230 × 560mm
Weight: 12kg
Operating Environment
Temperature Range: -20°C to 45°C
Protection Rating: IP20
Product Operate Guide

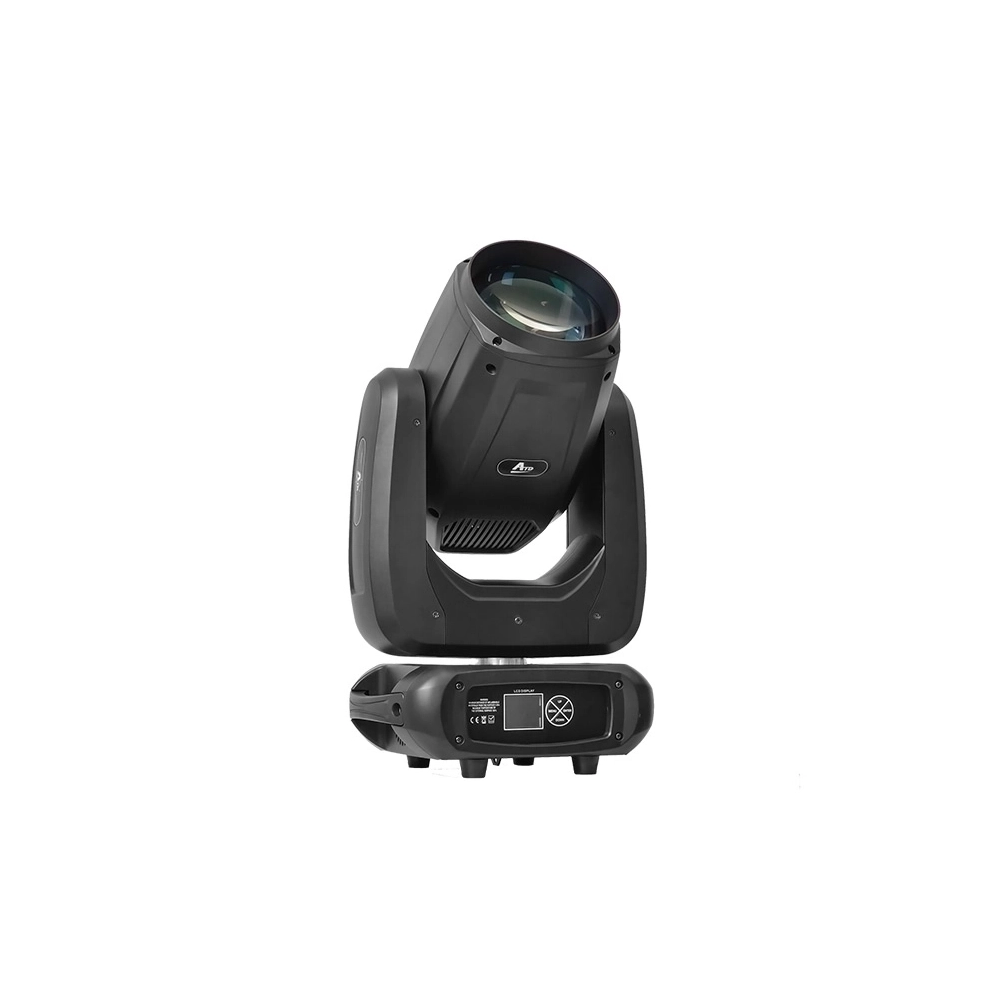

ATD LED 200 Beam Moving Head Light Operating Instructions.pdf
